You can upload an image from your smartphone to set as the wallpaper for the in-vehicle display.
The following images can be set.
- File formats (extensions): .jpg, .jpeg, .png
- Image size: 1264×624 (if larger, cropping or resizing is necessary during the setting process)
- File size: Up to 3MB
*Images with many characters or geometric patterns are not allowed
The following is a step-by-step explanation of how to set wallpaper.
Upload wallpaper (using the SUZUKI CONNECT app)
You can upload an image from your smartphone to set as the wallpaper for the in-vehicle display.
- Tap [
] on the Home screen.

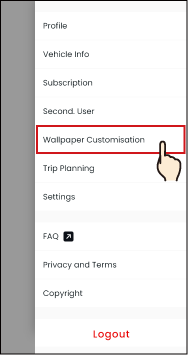

Tap [Wallpaper Customisation].
Tap [Upload Image].

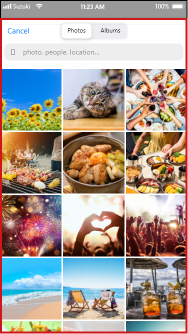

The images stored on the smartphone is displayed.
Select the image you want to set as the wallpaper.

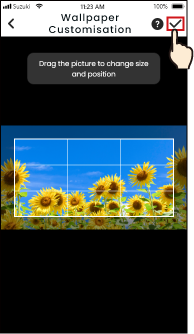

Set the position and size, then tap [
] at the top right.

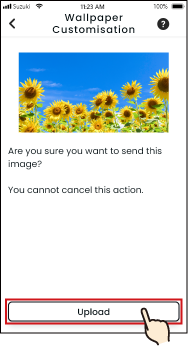

Tap [Upload].
The selected image will be uploaded and checked for any problems.
Settings in the SUZUKI CONNECT App are complete when the message “Check completed.” is displayed. Please perform the following operations on the in-vehicle display.
Settings in the SUZUKI CONNECT App are complete If a different message is displayed, please follow the content of the message and upload another image or take other appropriate actions.
Setting wallpaper (using the in-vehicle display)
Download an image to the in-vehicle display and set the image as wallpaper.
- On the Home screen of the in-vehicle display, tap [Settings] > [System] > [Wallpaper] > [Change wallpaper].
Tap [Download wallpaper].
Select a location for saving the image.
Select the saved image.
The selected image is set as wallpaper for the in-vehicle display.
